Plug; VE; 7 way RV

Description

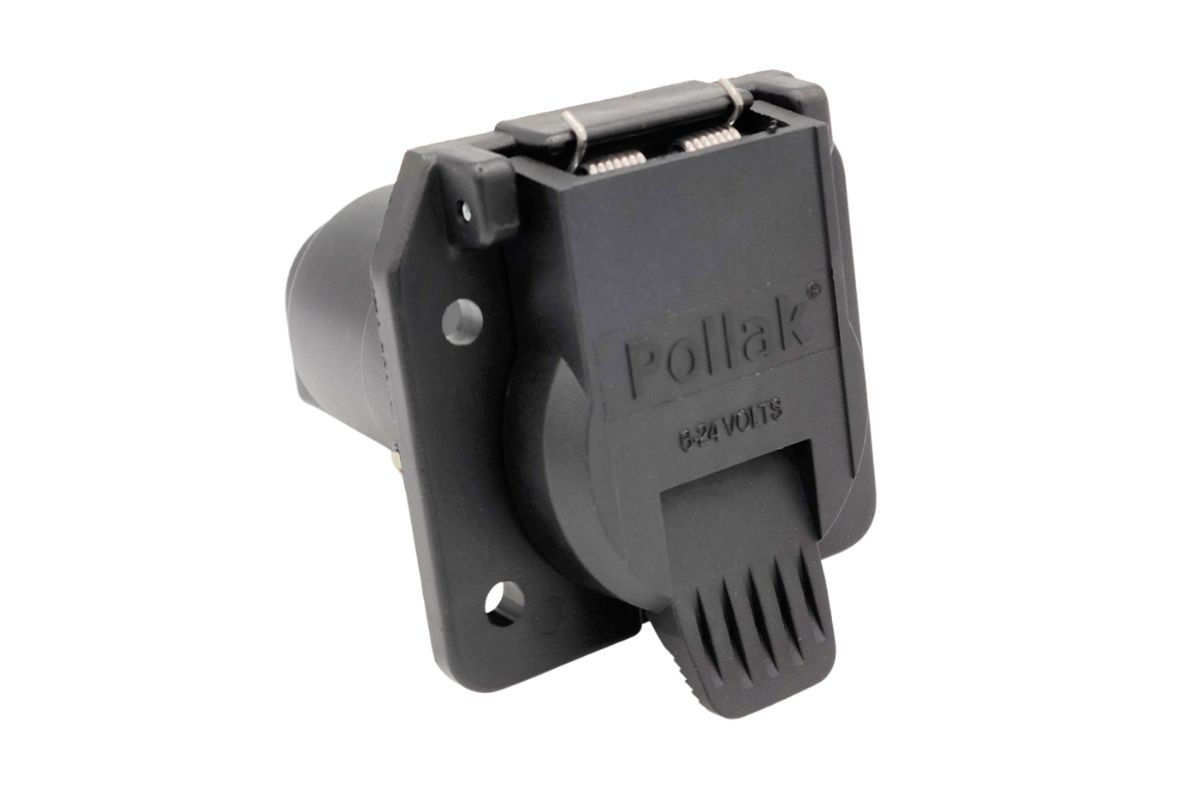

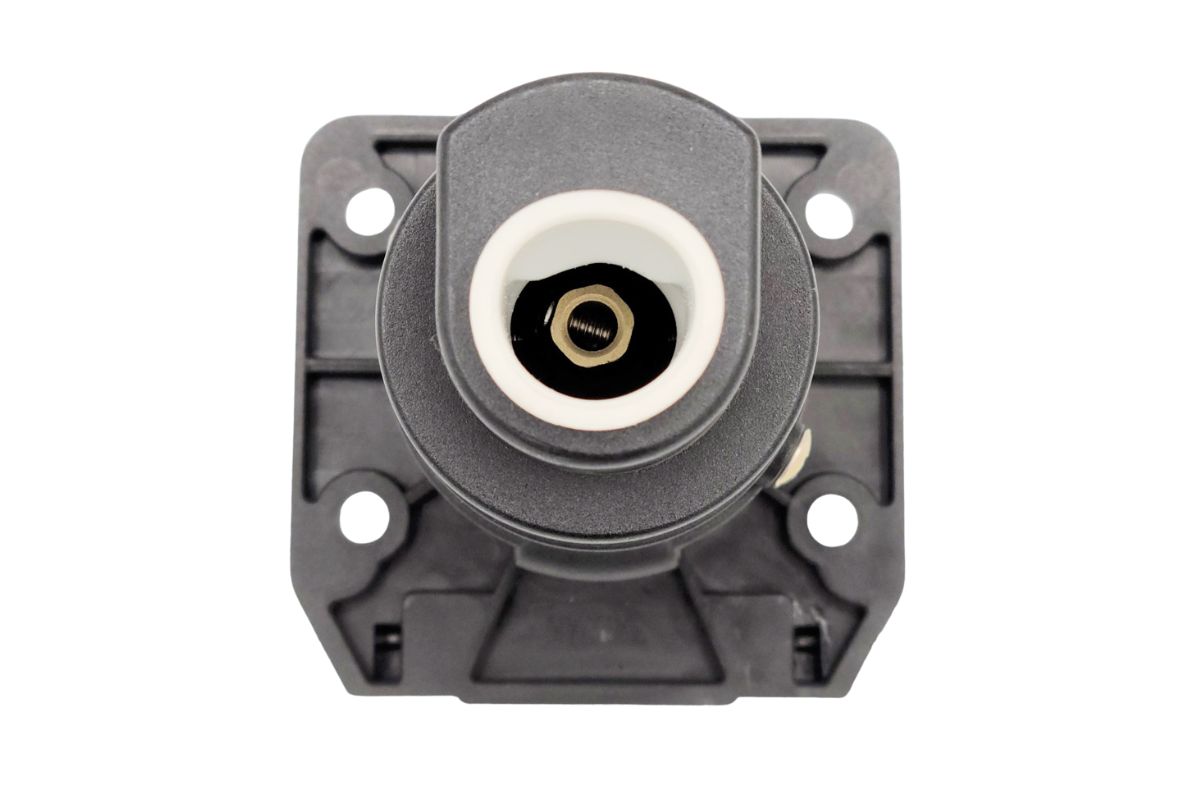

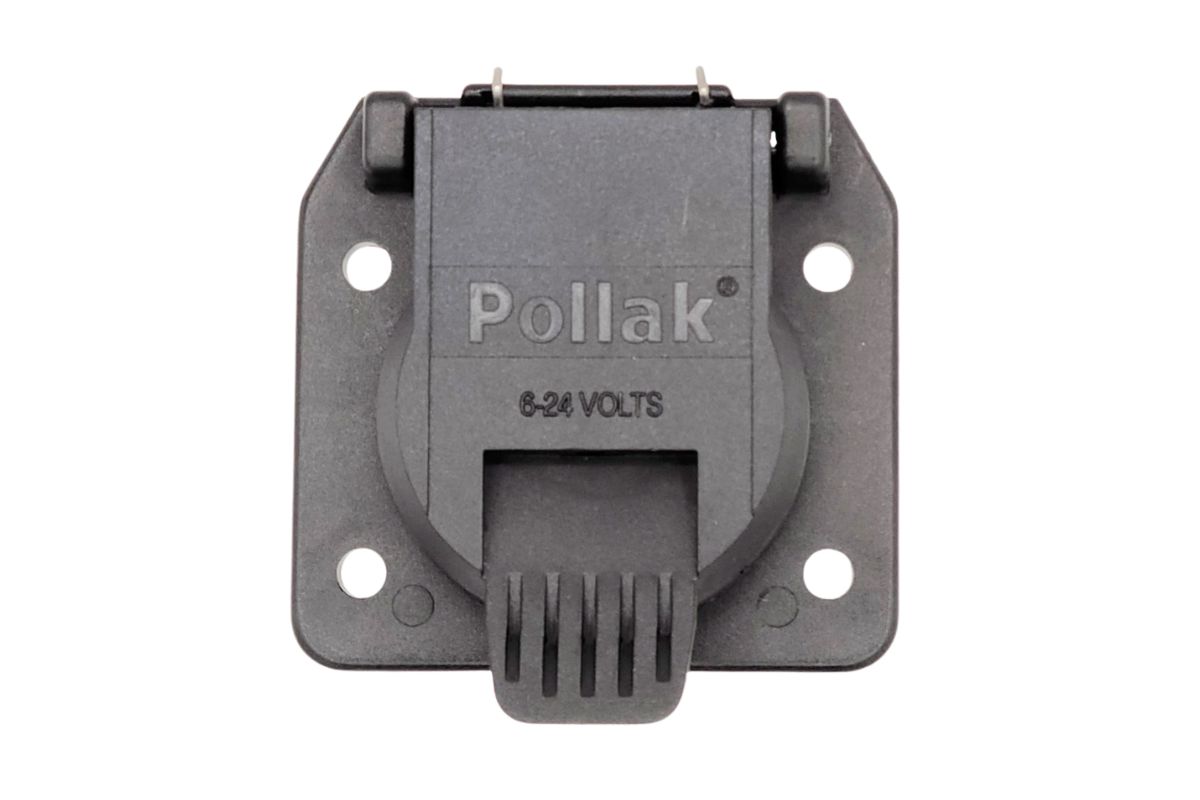

Standard, 7-pole, RV blade-style socket connects tow vehicle to trailer. Black plastic construction. Eliminates rusting. Non-corroding, shock-resistant interior design. Terminal reinforcer dams eliminate shorting out. Center pins accepts up to 8-gauge wire. Vinyl inserts keep out dirt and moisture. Spring-loaded lid with stainless steel spring and rubber gasket prevents leaks when closed. Drain slot has angled design for drainage. Safety latch secures trailer-end connector in socket and ensures connector is plugged into socket

Color-coded to RVI standards

Wiring configuration:

Color – circuit – recommended wire gauge:

White – Ground – 10 gauge

Blue – Electric Brake – 12 gauge

Green – Tail, License, and Running Lights – 14 gauge

Black – Battery Charge – 10 gauge

Red – Stop and Left-Hand Turn Signal – 14 gauge

Brown – Stop and Right-Hand Turn Signal – 14 gauge

Yellow – Auxiliary Circuit – 14 gauge (center)

Distance between mounting holes center to center: 2-1/4″ wide x 1-1/2″ tall
